Items | MYD-20KW Induction Heat Power | MYD-10KW Induction Heat Power | |
Input voltage | 3*380V, 50/60Hz, 4 Wires | 3*380V, 50/60Hz, 4 Wires | |
Input Current | 1~30A | 1~15A | |
Output Current | 0~300A | 0~200A | |
Output Power | 1~20KW | 1~10KW | |
Output Frequency | 5~30KHZ | 5~30KHZ | |
Thermocouple | K type | K type | |
Temperature system | Build in induction machine | Build in induction machine | |
Heating Temperature | Max800℃ | Max500℃ | |
Size | 700 x 330 x 410 mm | 650 x 310 x 410 mm | |
Weight | 32kg | 26 kg | |
Induction Heating coil | |||
Length | 10~20 M | 10~20 M | |
Diameter | 15 mm | 15 mm | |
temperature | -30~45℃ | 0~35℃ | |
Pipeline Size | OD: 50~500mm or equivalent | OD: 50~400mm or equivalent | |
Main Applications:
Preheat: weld heat,coating, spraying, bending, fitting&unfitting heat

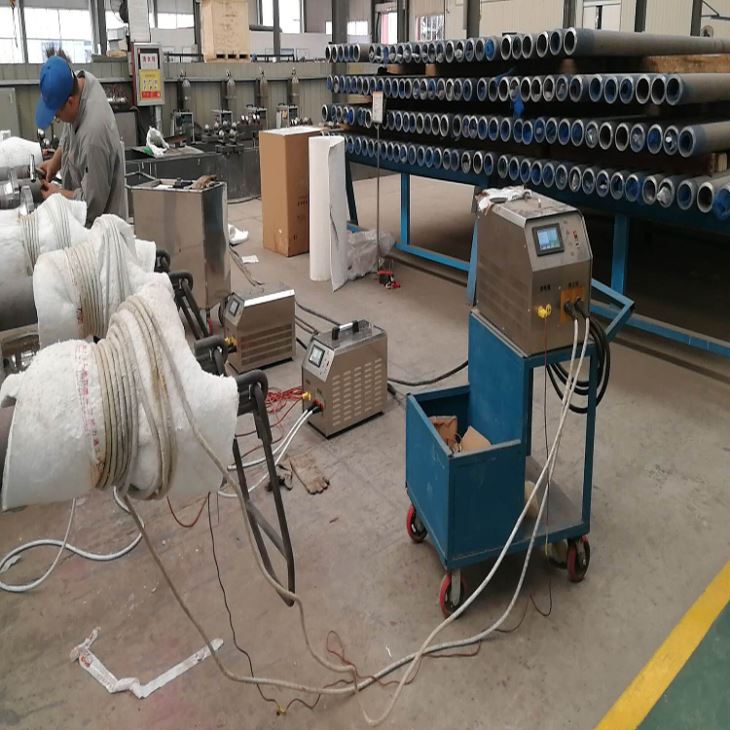

Post-weld heat treatment: tank, boiler, pipeline, steel sheet or other metal jobs
InductionHeat: mold heating, shipboard, zinc bath, large& irregular metal parts
Pipeline material heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material
Main Features：
High speed: 70%
Low tolerance
Energy Saving
High efficiency
Accurate heating
Simple operation
Non-contact heating
Environmental protection
Hypothermia circumstance
Air cooling is suitable for low-temperature environment
Induction heating is more uniform than oil,gas,flame heating
Shipping Details:
MYD-20KW heating machine (heating power, Cable coil, thermocouple)
Delivery Time: within 5 working days
Delivery: by air or by sea.
Packing: standard wood box
Packing size:720*360*450mm
Power weight: 32kg
Packing Weight: 45-55kg(parts included)
Country of Origin: China
MYD series induction heater to compare the resistant heater:
uniform
high speed
Energy Saving: 30-80%
Storage:
Dirt, dry environment
Temperature at -20 ~ 60 ℃
Humidity must be in the range of 0% to 95%, and no dew
Avoid contain corrosive gases, liquids
Warranty:
The heating power wins 13months since contract signed date.
