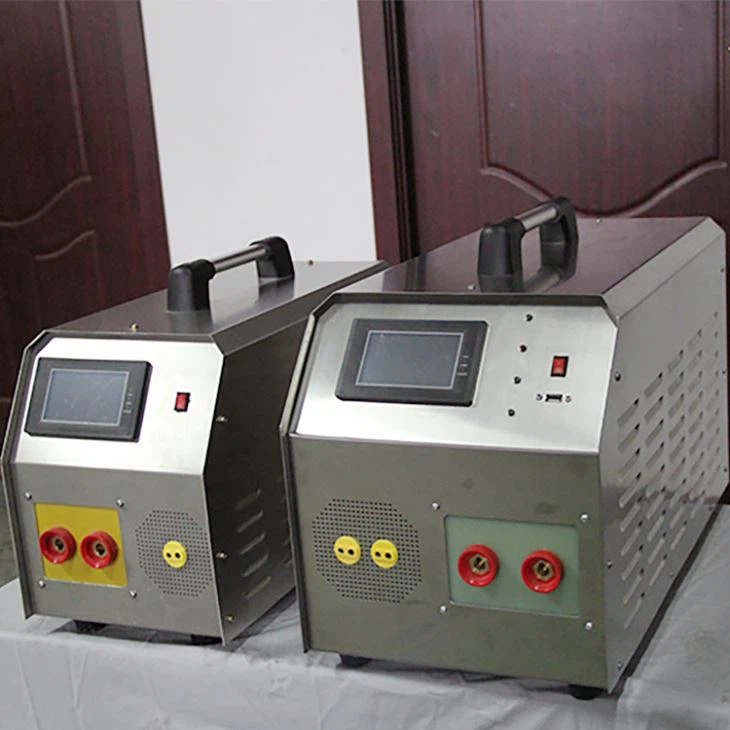

MYD-20KW portable Induction Heater for heat treatment

Welcome to buy the MYD-20KW portable Induction Heater for heat treatment made in China at a discount from our factory. We're one of the professional manufacturers and suppliers in China, offering you the customized service with cheap price. Please be free to enjoy our low price, good service and fast delivery.



MYD-20KW Induction heater forWeld heat & post-weld heat treatment and pipeline heating

Items	MYD-20KW Induction Heat Power		MYD-10KW Induction Heat Power
Input voltage		3*380V, 50/60Hz, 4 Wires	3*380V, 50/60Hz, 4 Wires
Input Current		1~30A	1~15A
Output Current		0~300A	0~200A
Output Power		1~20KW	1~10KW
Output Frequency		5~30KHZ	5~30KHZ
Thermocouple		K type	K type
Temperature system		Build in induction machine	Build in induction machine
Heating Temperature		Max800℃	Max500℃
Size		700 x 330 x 410 mm	650 x 310 x 410 mm
Weight		32kg	26 kg
Induction Heating coil
Length		10~20 M	10~20 M
Diameter		15 mm	15 mm
temperature		-30~45℃	0~35℃
Pipeline Size		OD: 50~500mm or equivalent	OD: 50~400mm or equivalent

Main Applications:

Preheat: weld heat,coating, spraying, bending, fitting&unfitting heat

Post-weld heat treatment: tank, boile, pipeline, steel sheet or other metal jobs

InductionHeat: mold heating, shipboard, zinc bath, large& irregular metal parts

Pipeline material heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material

MYD-20KW heating machine including:

Main Features：

High speed: 70%

Low tolerance

Energy Saving

High efficiency

Accurate heating

Simple operation

Non-contact heating

Environmental protection

Hypothermia circumstance

Air cooling is suitable for low-temperature environment

Induction heating is more uniform than oil,gas,flame heating

Shipping Details:

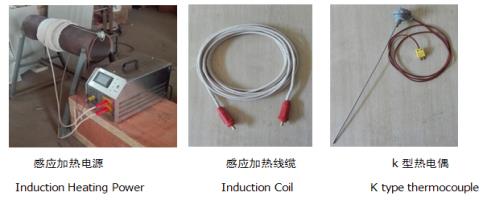

MYD-20KW heating machine (heating power, Cable coil, thermocouple  included.)

Delivery Time: within 5 working days

Delivery: by air or by sea.

Packing: standard wood box

Packing size:720*360*450mm

Power weight: 32kg

Packing Weight: 45-55kg(parts included)

Country of Origin: China



Contact:

Coils:

Induction heater and parts for choice:

No.	Goods&Descriptions	Quantity	FOB Price	Amount
1.	MYD-20KW HEATING POWER	1
2.	MYD-10KW HEATING POWER	1
3.	CABLE COIL 15M	1
4.	CABLE COIL 20M	1
5.	THERMOCOUPLE  K TYPE	1
6.	INSULATION BLANKET (800℃ 1500*600*50mm)	1
7.	INSULATION BLANKET (800℃ 900*600*50mm)	1
8.	R-1006 Temperature Recorder	1

MYD-20KW portable induction heating equipment used at the Bridge Construction

Weld preheat and post weld heat treatment-Design the coil according to the fillet weld

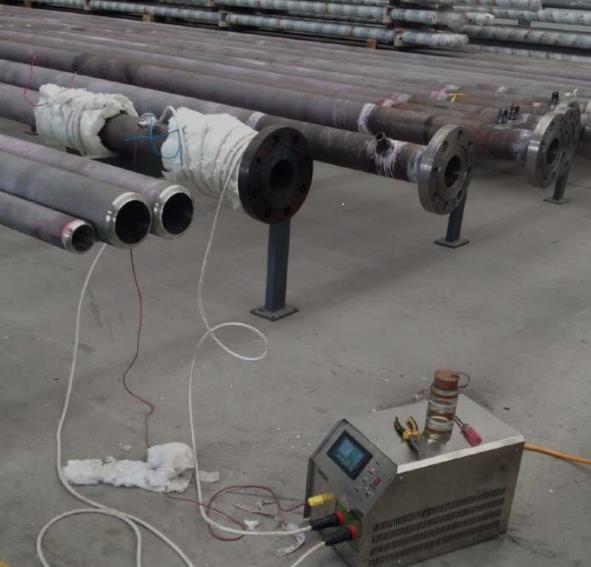

MYD-20KW portable induction heater used for post weld heat treatment

Storage:

1. Dirt, dry environment

2. Temperature at -20 ~ 60 ℃

3. Humidity must be in the range of 0% to 95%, and no dew

4. Avoid contain corrosive gases, liquids

Warranty time: the heating power wins 13months since contract signed date.
