Y Series induction heater Frequency: 5KHZ~40KHZ Power: 40kw-160kw.

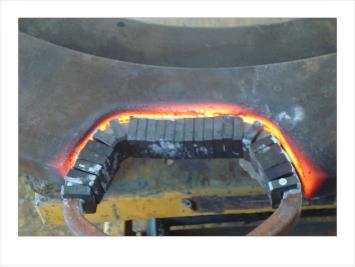

Coil：
MY series induction heater excellent features
Ø uniform
Ø high speed
Ø Energy Saving: 30-80%
Storage:
Ø Dirt, dry environment
Ø Temperature at -20 ~ 60 ℃
Ø Humidity must be in the range of 0% to 95%, and no dew
Ø Avoid contain corrosive gases, liquids
Warranty:
Ø The heating power wins 13months since contract signed date.
Model | MY-100KW | |
Input Voltage | 380V, 3 phase, 50/60HZ | |
Input Working Voltage | 340V~ 420V, 3 phase, 50/60HZ. | |
Max Input Current | 160A | |
Output Power | Max 100KW | |
Output Frequency | 5KHZ~30KHZ | |
Output Current | 400A ~ 4000A | |
Cooling water | Water Pressure | 0.2 ~ 0.3 MPA |
Flowing of Water | 10 L/Min | |
Water Max Temperature | 45℃ | |
Weight | Induction generator | 129KG |
Transformer | 80KG | |
Size | Induction generator | 840×550×1190mm |
Transformer | 600×430×500mm | |
What we can supply:
Type of equipment:
Ø MYF series IGBT Medium Frequency Induction Heating Equipment;
Ø MY series IGBT High Frequency Induction Heating Equipment;
Ø MYH series U-High Frequency Induction Heating Equipment;
Ø MYD series air cooling induction heater for weld heat and PWHT
Main Appliations of equipment:
Ø Diathermy: heating-forging, deeply heating-shaping, heating-rolling
Ø Welding: braze welding, hot cooperate, heating fusion
Ø Heat treatment: quenching, annealing, etc.
Ø Smelting: melting for gold, copper, stainless steel and other metal materials
Ø Weld heat and PWHT: weld preheat, post weld heat treatment, pipeline heat,
Hot fitting, stress relief, coating heat, spraying heat
After Service Centre:
QINGDAO SHUIMU INDUCTION EQUIPMENT CO.,LTD
² Add: C-1805, Suning Plaza, Licang, Qingdao, China 266121
² Tel: 86-532-89980348; Fax:86-532-84623448
² E-mail: service@cmheat.com; Http://www.cmheat.com
