MYD-10KW welding preheat equipment for
Weld heat & post-weld heat treatment and pipeline heating
MYD-10KW Induction Heating Power | |
Input voltage | 3*380V, 50/60Hz, 4 Wires |
Input Current | 1~15A |
Output Current | 0~200A |
Output Power | 1~10KW, Max 15KW, 150% output duty cycle |
Output Frequency | 5~30KHZ |
Thermocouple | K type |
Temperature system | Build in induction machine |
Heating Temperature | Max800℃ |
Size | 650 x 310 x 410 mm |
Weight | 26 kg |
Induction Heating coil | |
Length | 10~20 M |
Diameter | 15 mm |
Working temperature | 0~35℃ |
Pipeline Size | OD: 50~500mm or equivalent |
Main Application of welding preheat equipment:
● Preheat: weld heat,coating, spraying, bending, fitting&unfitting heat
● Post-weld heat treatment: tank, boile, pipeline, steel sheet or other metal jobs
● Induction Heat: mold heating, shipboard, zinc bath, large& irregular metal parts
● Pipeline material heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material
MYD-10KW welding preheat equipment including:
Main Features of the welding preheat equipment：
u High speed
u Low tolerance
u Energy Saving
u High efficiency
u Accurate heating
u Simple operation
u Non-contact heating
u Environmental protection
u Hypothermia circumstance
u Air cooling is suitable for low-temperature environment
u Induction heating is more uniform than oil,gas,flame heating
Shipping Details:
MYD-10KW welding preheat equipment (heating power, Cable coil, thermocouple included.)
u Delivery Time: within 5 working days
u Delivery: by air or by sea.
u Packing: standard wood box
u Packing size:680*340*450mm
u Power weight: 32kg
u Packing Weight: 35-45kg(parts included)
u Country of Origin: China
Contact:
Coils:

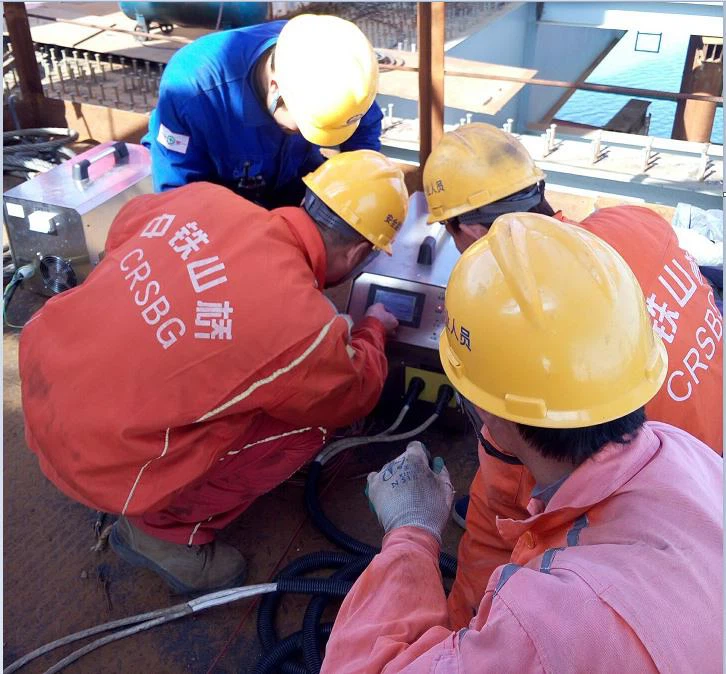

MYD-10KW portable induction heating equipment used at the Bridge Construction
- Weld preheat and post weld heat treatment(PWHT)
-Design the coil according to the fillet weld in Bridge
