MYDS-40KW Portable Induction Heater For Pipeline, Steel Sheet And Structure Weld Joint Preheat

MYDS-40KW Portable Induction Heater For Pipeline, Steel Sheet And Structure Weld Joint Preheat

MYDS-40KW Portable induction heater for pipeline, steel sheet and structure weld joint Preheat
Model: MYDS-20KW, 30KW, 40KW
Type:IGBT induction heating
Brand: Shuimu Induction
Frequency: 2-30Khz
HS code: 8514400001
Origin: China
Blanket coil: MYDS-10KW-1000*260mm
Application: Weld Joint preheat, assembly,coating, melting, insulation,
fluid heating(water, gas, oil and chemical materials), metal or non-metal drying

Product Details

MYDS-40KW Portable induction heater for pipeline, steel sheet and structure weld joint heat

MYDS-40KW Induction Heater

Input Power

3*380V, 50/60Hz, 5Lines

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT158.png

Output power

1-40KW

Input Current

1-60A

Output Current

0-200A

Frequency

5-30KHZ

Thermocouple

K type

Temperature control system

Built-in

Size

510x260x380mm

Weight

22 kg

Max Temperature

0-800

Weld Joint Length

100-4000mm

Weld Joint Type

Pipeline circular weld seam, steel sheet straight weld seam, steel structure angle weld joint, groove weld, surface and torus surfacing, and other irregular weld joint preheat.

Induction Coil

1.Soft Cable Coil: 15m;20m;30m;40m

2.Blanket Coil: 1000*300; 2000*300; 3000*300;3000*300

3.Fillet Coil: 1000*(150+150);2000*(150+150); 3000*(150+150)

4.Circular coils: ¢(100-1000)*(200-600)mm

5.Customized other size and shape.

Induction Coils and  K Type Thermocouples

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT886.pngMYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT888.pngMYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT890.png

Soft Cable Coil               Blanket Coil and Fillet Coil                         Circular Coil                           Clamp Coil

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT1008.pngMYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT1010.pngMYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT1012.png

Extend Cable for Coil                    K Type Thermocouple                                 Handhold Thermocouple

Main applications:

Weld preheat: steel weld joint heat,stress relief heat treatment and hydrogen removal.

Liquid material heating: heat oil, gas, water by heating pipeline, tank, vessel, boiler or reactor.



The field of the induction heating equipment involves oil, petrochemical, aerospace, shipbuilding, steel, boilers, ships, pressure vessels, steel frame structure, railway, bridge, mine construction, automobile manufacturing, nuclear power, mining industry and so on.



Main features:

Easy operation: Air cooling and PLC touch screen operation.

High accuracy: DSP and temperature control system .

High speed: Metal heat itself than the resistance or flame heat conduction or thermal radiation.

High efficiency: 96% heat conversion efficiency and insulation brings the high utilization of energy.



MYD series induction heater to compare the resistant heater:

Uniform

High speed

Energy Saving: 30-80%



Storage:

Clean, dry environment

Temperature at -20 ~ 60 ℃

Humidity must be in the range of 0% to 95%, and no dew

Avoid contain corrosive gases, liquids



Warranty:

The heating power wins 12months since contract signed date.



After Service Centre:

QINGDAO SHUIMU INDUCTION EQUIPMENT CO.,LTD

Add: C-1805, Suning Plaza, Licang, Qingdao, China 266121

Tel: 86-532-89980348; Fax:86-532-84623448

E-mail: service@cmheat.com; Http://www.cmheat.com

Main parts:

No.

Items

Size

Quantity

Unit Price

Remarks

1.1

Induction heater

MYDS-40KW




2.1

Soft Coil

40m




2.2

Soft Coil

50m




2.3

Soft Coil

60m




2.4

Soft Coil

70m




2.5

Blanket Coil

1000*300




2.6

Blanket Coil

2000*300




2.7

Blanket Coil

3000*300




2.8

Blanket Coil

4000*300




2.9

Fillet Coil

1000*(150+150)




2.10

Fillet Coil

2000*(150+150)




2.11

Fillet Coil

3000*(150+150)




2.12

Fillet Coil

4000*(150+150)




2.13

Customized other size





3.1

Thermocouple

K type 2m




3.2

Thermocouple

K type 3m(weld)




4.1

Insulation Blanket

900*600*50mm




4.2

Insulation Blanket

 1500*600*50mm




4.3

Insulation Blanket

 2000*600*50mm




5.1

Extend Cable for Coil

5m




5.2

Extend Cable for Coil

10m




5.3

Extend Cable for Coil

15m




6.1

Extend Cable for Thermocouple

5m




6.2

Extend Cable for Thermocouple

10m




6.3

Extend Cable for Thermocouple

15m




Remarks: Customized parts.




Field Heating and Heat treatment Pictures:


Pipeline weld heat and PWHT- girth(circumferential) weld joint heating-300

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT3669.jpg

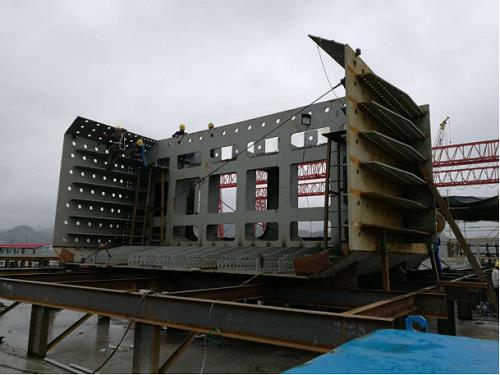

Bridge steel structure weld preheat-Fillet&flat weld joint heating 120

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT3746.jpg


Sea shore Flatform steel structure weld heat-Fillet weld joint 300

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT3817.jpg


Steel structure of railway tunnel shield machine-straight&fillet weld joint preheat 260

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT3908.jpg


flange plate before welding - thickness 210-900mm, preheating 150

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT3978.jpg


Bridge steel structure weld preheat-thickness 30-90mm, temperature 260

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT4052.jpg


Ship deck weld joint heat-thickness 20-90mm, straight weld joint 200

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT4132.jpg


Pipeline valve surfacing heat treatment - 680

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT4183.jpg


Pipeline Liquild heating-Gas, Oil, Water heating

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT4235.jpg


Chemical Reactor or Reaction Kettle Heating

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT4282.jpg


Boiler Pipeline heating-Gas, Oil, Water heating

MYDS-40KW Portable induction heater for Pipeline, Steel sheet and structure weld heat and PWHT4336.jpg
