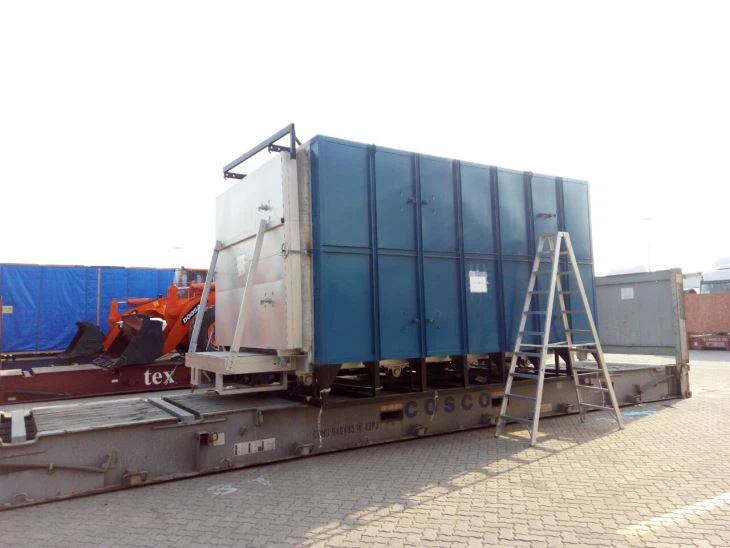

MYTR Trolley Electrical Resistance Furnace

MYTR Trolley Electrical Resistance Furnace

Industrial heat furnace for Annealing, normalizing, quenching, tempering Industrial heat furnace/Industrial furnace /heat furnace Remarks: Various size furnaces can be designed and manufactured as user's needs.

Product Details

MYTR Trolley Electrical Resistance Furnace mainly applications:  annealing, normalizing, quenching, tempering

Brief

MYRT series trolley furnace is the national standard energy-saving heat treatment furnace, mainly used for large and medium-sized high chrome, high manganese steel casting, gray iron castings, nodular cast iron, roller, steel ball, hammerhead of the crusher, wear-resisting liners, pressure vessel, slewing bearing, large axial, mechanical parts and mould material for annealing and other heat treatment. Electric or gas can be used as heating source.

Structure

MYRT series trolley furnace consist of furnace shell, furnace linings ,furnace door, door hoisting appliance, heating element, bogie  and driving mechanism, sealing mechanism, intelligent electrical control system, etc.

Feature

1. Large loading capacity, strong heat treatment ability for large work piece, high efficiency and low operation cost.

2. The furnace linings is made of the complete fiber structure, compared to the brick furnace chamber, effectively improve the performance of heat preservation.

3. For the small and medium size furnace, no need to installation basic foundation, integration of rail, can be used on a level ground.

4.Large -scale electric furnace adopts multiple district heating, in order to improve the temperature uniformity, the heating elements are installed at the furnace door, back wall and bogie, high-power electric furnace, equipped with multi-automatic temperature control cabinet, respectively for district heating automatic temperature control.

5.The operation of the furnace door and bogie is full automatic control. Each electric box is equipped with several pieces of instrument and automatic observer which can provide the controlling of the furnace temperature, automatic recording, over temperature automatic power-off protection and so on.







Information

No

RT-125

RT-150

RT-220

RT-280

RT-360

1

Power (KW)

125

150

220

280

360

2

Temperature()

900/1200

900/1200

900/1200

900/1200

900/1200

3

Capacity (Kg)

3000

4500

7000

10000

12000

4

Chamber size

(mm)

 (L)

1800

2000

3000

3600

2400

 (W)

900

1000

1200

1500

1200

 (H)

650

700

1000

1000

800

5

Size

(mm)

 (L)

2700

2900

3900

4500

3300

 (W)

1750

1850

2050

2350

2050

 (H)

2100

2150

2450

2450

2250
